Mount Imbiah Battery Magazine

The Magazine

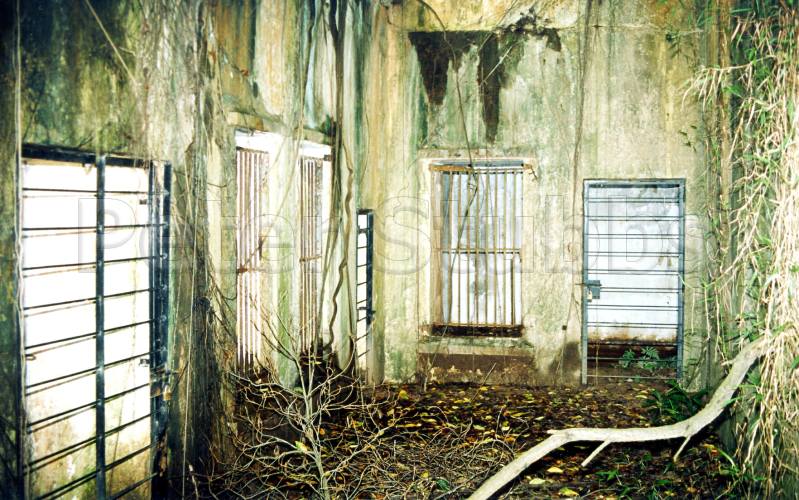

The Magazine in 2010

The gates and window grills in the photos below are not original. When the Magazine was in service, steel doors and shutters were used. Entrances to all rooms had steps. This was to prevent flooding during periods of heavy rain.

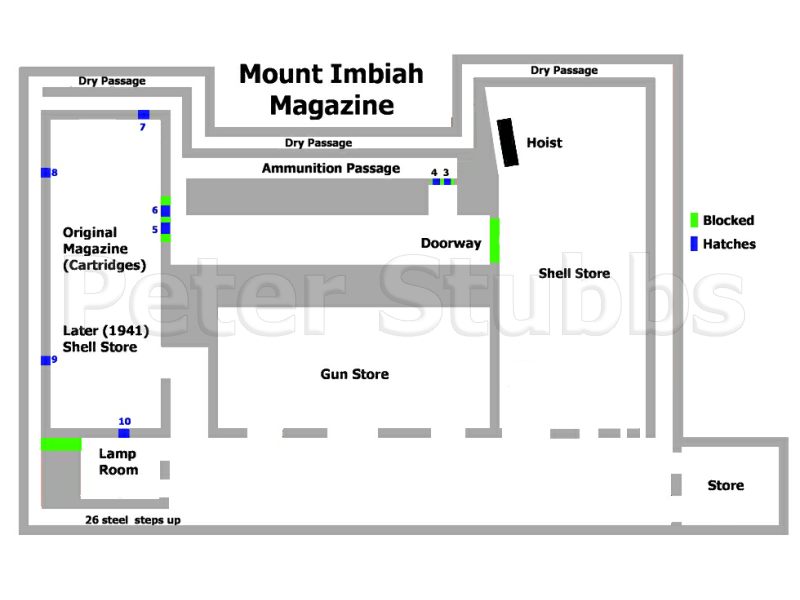

Plan of the Magazine
A Plan of the Magazine.
This plan is a little incorrect. It will be amended following my next visit this year

Bird nests

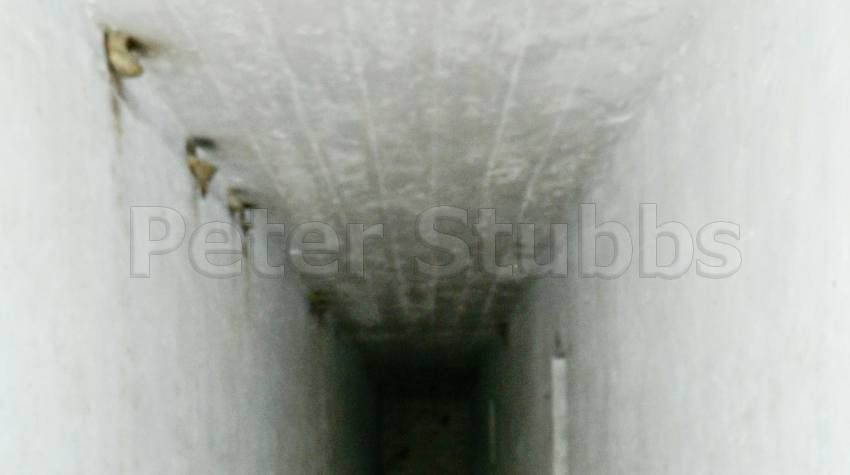

Swift’s nests in the ammunition passage
Ammunition hatches are on the wall to the right
